WRAS Approved Crosswater Wall Hung Ultra Slim 1140mm Height Support Frame with Dual Flush Cistern

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £116.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £87.50 with Clearpay Learn more about Clearpay

What's great about it?

  • High level and ultra slim wall hung toilets WC support frame
  • Tested to take up to 400kgs in weight
  • 5 year manufacturers guarantee
  • Includes WRAS approved dual flush cistern

Full details

The Drench difference

3D Design Service

We've helped thousands of customers create their dream space. More

Free consultations

Book a chat with our bathroom experts. More

Rated 'Excellent'

Delighting customers for 10+ years. See reviews

90 days to change your mind

+ optional specialist collection service. See policy

Free delivery over £500

Standard delivery to most of UK, plus discounted next day rates too. See policy

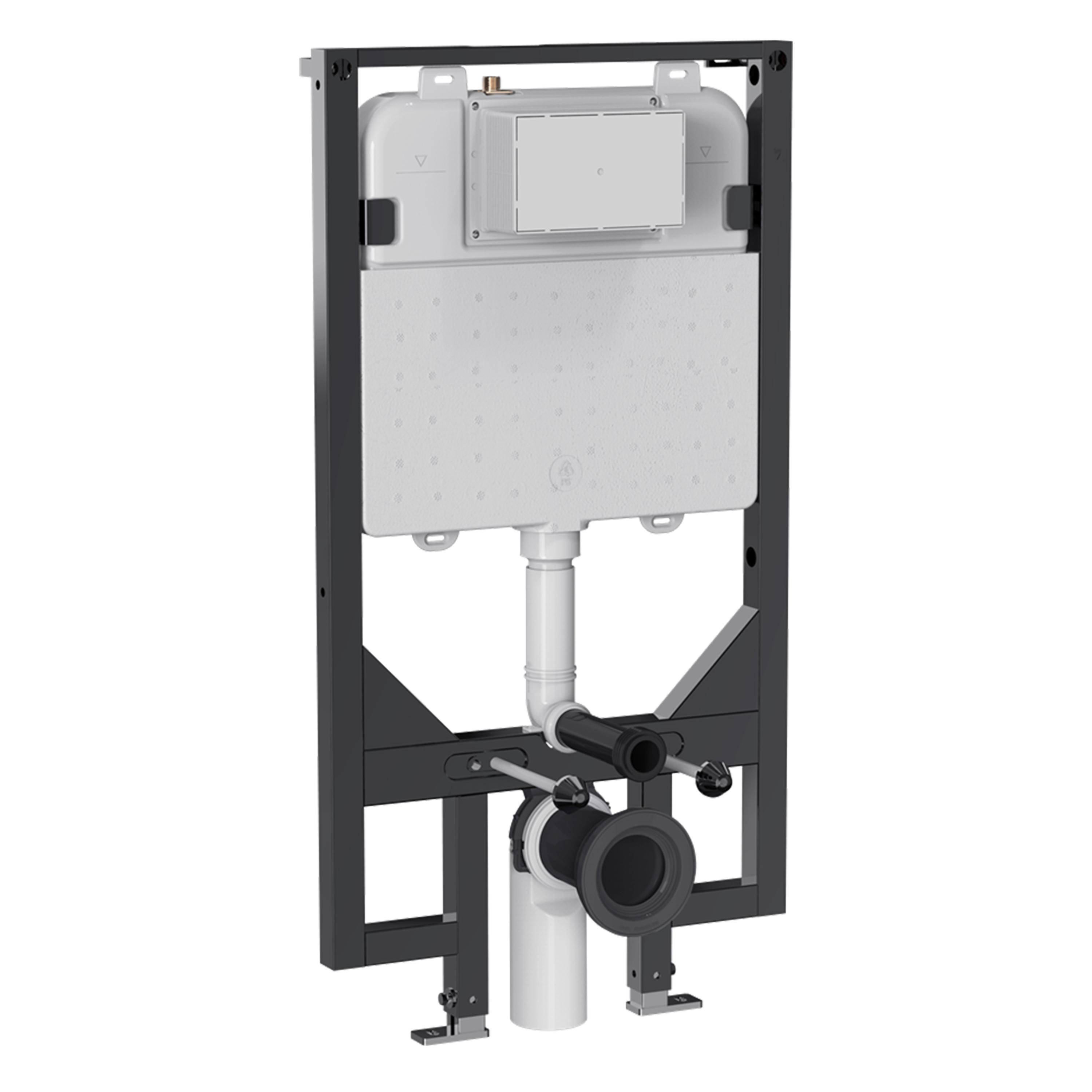

The Crosswater Wall Hung Ultra Slim Support Frame is the perfect pairing with a high-level wall hung toilet, especially for smaller spaces where the ultra-slim design can be installed in tighter spaces. You'll be happy to hear how incredibly easy this frame is to install, with the choice of fitting it horizontally or vertically with wall brackets.

Provided with dual flush technology too, the cistern has all of the attributes to contribute to a quantifiable saving in water when taking advantage of this 'half-flush' technology.

In terms of strength, the frame itself has been tested and approved as being able to support up to 400kg. The epoxy power coated steel frame makes strength this support frame's greatest quality.

Features:
  • Solidly constructed frame and dual flush cistern for wall hung toilets
  • Will to take up to 400kg in weight
  • The depth is 90mm, which is perfect for smaller bathrooms or if you wanted to create a tiled surround
  • Simple to fix with large rear feet (designed for UK timber floors)
  • The adjustable feet are fitted with sound deadening rubber pads
  • UK sized outlet and inlet pipe work
  • Easy install wall brackets for horizontal and vertical fixing
  • Fitted with solid brass ½" BSP top inlet valve

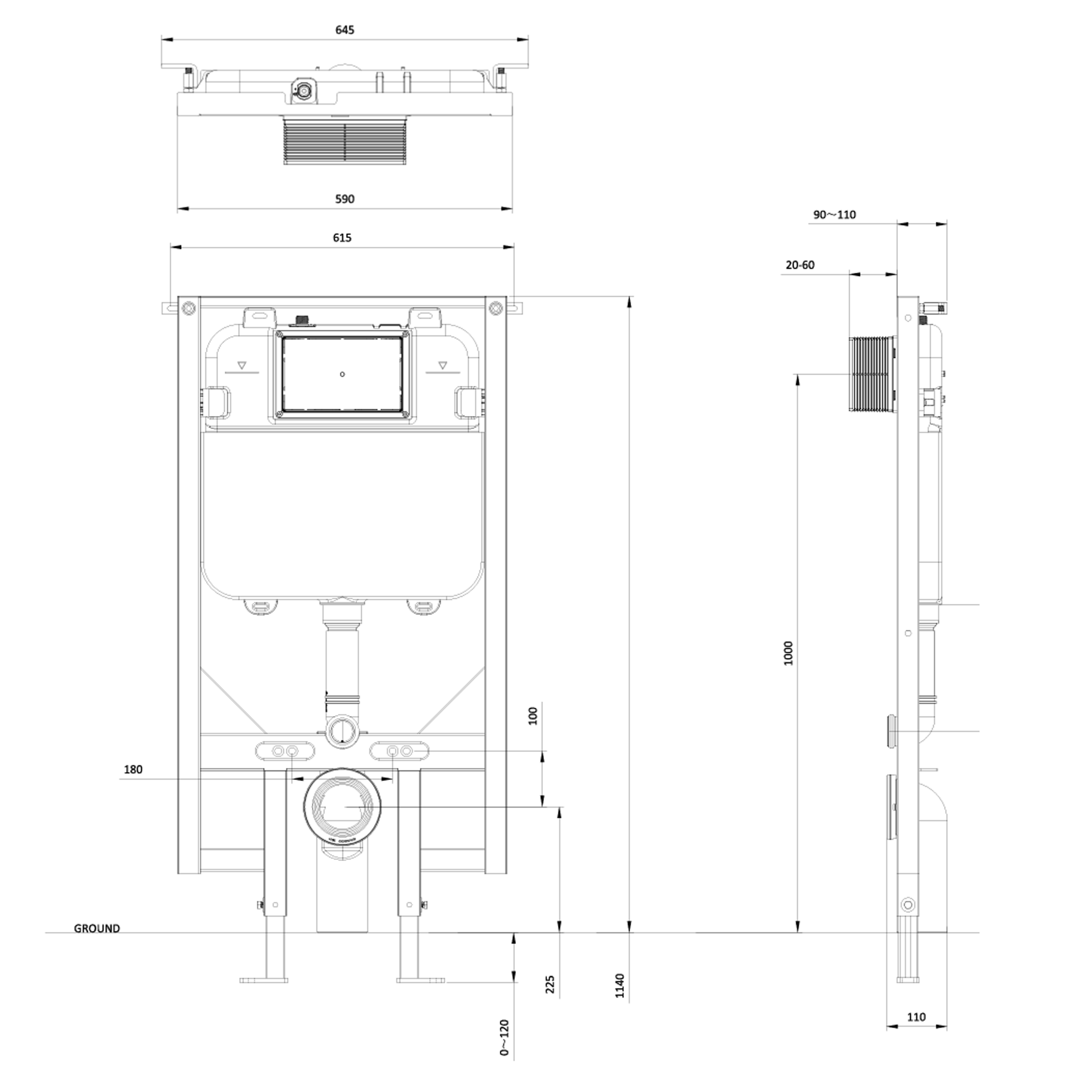

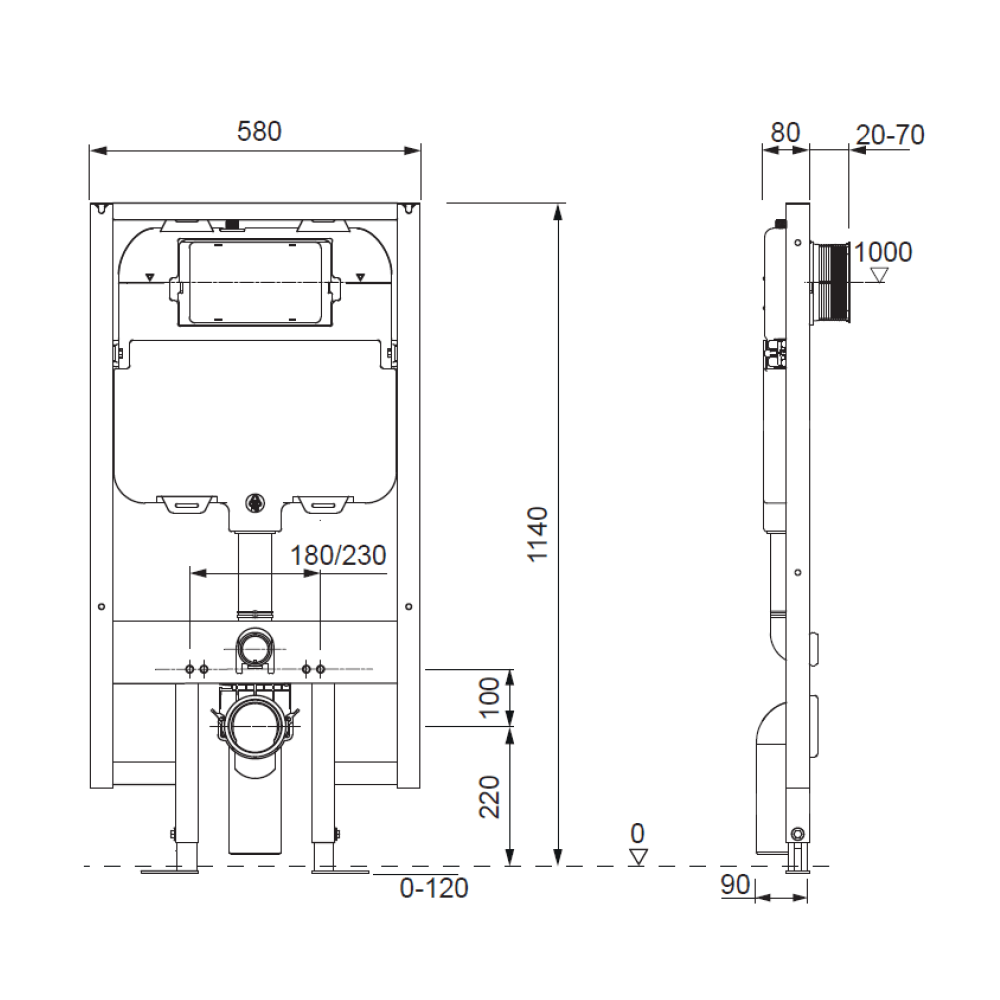

  • Dimensions: W580 x H1180 x D90mm
  • 0 - 120mm height adjustable
  • WRAS approved dual flush cistern
  • 6 & 4 litre flush operation
  • Epoxy power coated steel frame
  • Flush plate and WC are sold separately, please see our recommended extras
  • Soil pipe can run either side (left or right) as well as vertically into the floor
  • This larger WC frame will not fit into some WC units, please check your measurements carefully before purchase and installation
  • Covered by a 5 year manufacturer's guarantee (subject to online registration - please click here for further details)

Product Overview
Product Code WCF118X50_VS_V2
Type Concealed Cisterns & Frames
Brand Crosswater
GuaranteeMore information 5 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Popular Features Height Adjustable, WRAS Approved
Material ABS Plastic, Metal
Style
Shape Square
Finish White
Style Modern
Dimensions
Width (mm) 580
Height (mm) 1140
Depth (mm) 90
