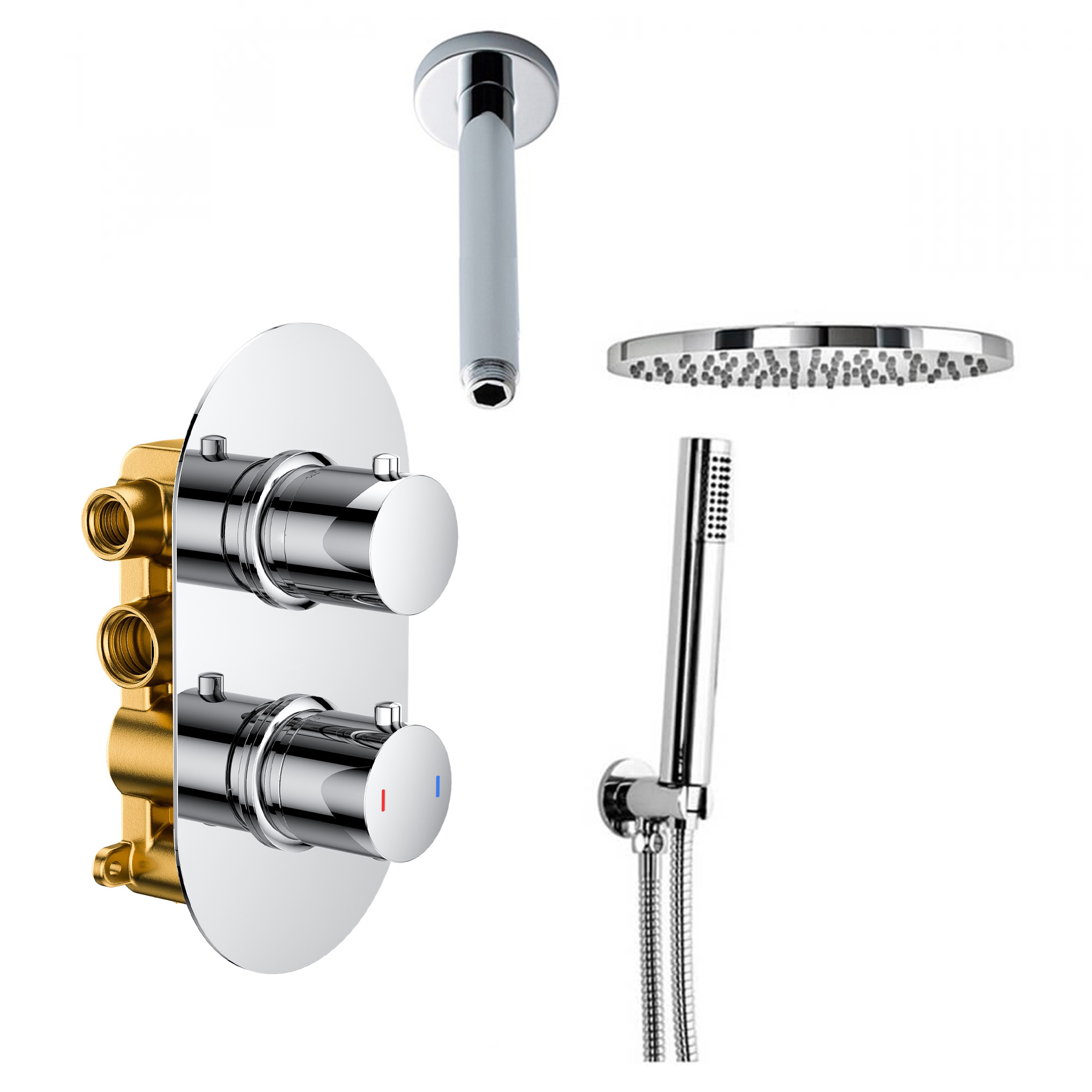

Featuring a selection of four shower arms and with the flexibility to position Harper's valve either horizontally or vertically, you can tailor your shower setup to flawlessly harmonise with your space.
Inside the valve, you'll encounter our cutting-edge Anti Calc Thermostatic Cartridge, which serves as an effective solution to common issues such as temperature fluctuations and reduced water flow caused by internal blockages. Press down on the safety button on the thermo handle, then turn to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time
Valve Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

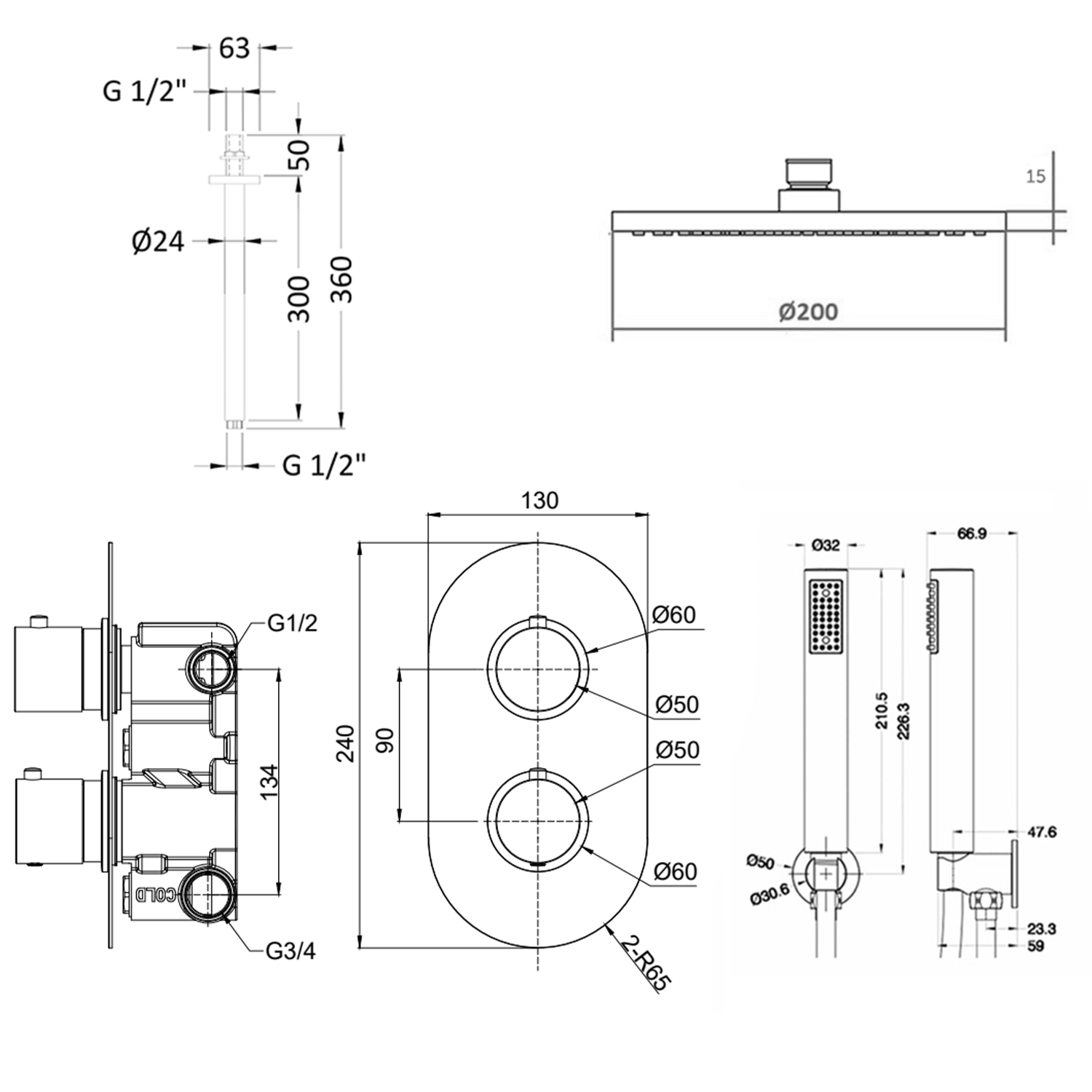

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 1.0 bar (l/min): 13.8
- 1.5 bar (l/min): 16.8
- 2.0 bar (l/min): 19.4
- 3.0 bar (l/min): 23.5
- 4.0 bar (l/min): 27.4
- 5.0 bar (l/min): 30.6
Shower Head Features:
- 200mm ABS plastic in a dazzling Chrome finish
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
- Minimum water pressure required: 1 bar
- Covered by a 2 year manufacturer’s guarantee
Shower Arm Features:
- 4 shower arms to choose from to customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
- 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee
Shower Handset with Wall Outlet & Hose Features:
- Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
- Modern concealed design in a high-shine Chrome finish
- Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
- Covered by a 2 year manufacturer’s guarantee
Product Code | dr-harper-cnc-shwr-kit-300ca |
---|---|
Type | Concealed Shower Sets & Valves |
Brand | Drench |
Brand Range | Drench Harper |
GuaranteeMore information | Various |
Cartridge TypeMore information | Ceramic Disc |
---|---|
Number of OutletsMore information | 2 Outlets |
Popular Features | Easy Clean Nozzles |
Material | Brass, Stainless Steel, Zinc Alloy |
Temperature Control | Thermostatic |
Shape | Round |
---|---|
Finish Texture | Polished |
Finish | Chrome |
Style | Modern |
Orientation | Landscape, Portrait |
Handle Type | Dual Control, Round |
Mounting Type | Ceiling Mounted |
Flow Rate at 1 Bar (l/min) | 13.8 |
---|---|
Flow Rate at 1.5 Bar (l/min) | 16.8 |
Flow Rate at 2 Bar (l/min) | 19.4 |
Flow Rate at 3 Bar (l/min) | 23.5 |
Flow Rate at 4 Bar (l/min) | 27.4 |
Flow Rate at 5 Bar (l/min) | 30.6 |
Minimum Water PressureMore information | 1 |
