Features:
Dimensions:
- Concealed cistern crafted from durable, tested materials for years of dependable use
- One-piece blow-moulded construction ensures no leaks as there are no joins for water to escape from
- Insulating polystyrene jacket helps to reduce condensation and enables silent water filling & discharging
- Adjustable dual flush system to save water and reduce your bills - preset to 5.8/3 litres as standard, and adjustable between 3-4l for the half flush
- Cistern operating pressure: 0.1 - 10 bar
- WRAS approved
- Meets EN 14055, Class II standards
- Immediate post flush capability possible with factory settings - comes with required fill and flush valves for it to be operational immediately after installation
- Easy maintenance - access all parts easily by removing the flush plate
- Flush bend and water supply connection designed for easy installation
- Water inlet location on the rear or top centre for easy installation
- Front actuation for a vertical flush plate installation
- Compatible with Geberit Delta flush plates - sold separately, please see our recommended extras
- Trusted Geberit engineering ensures reliable and consistent performance
- Covered by a 10 year manufacturer’s guarantee, with a 25 year spare parts guarantee (Geberit will continue to make and have available spare parts for the next 25 years from the date of sale)

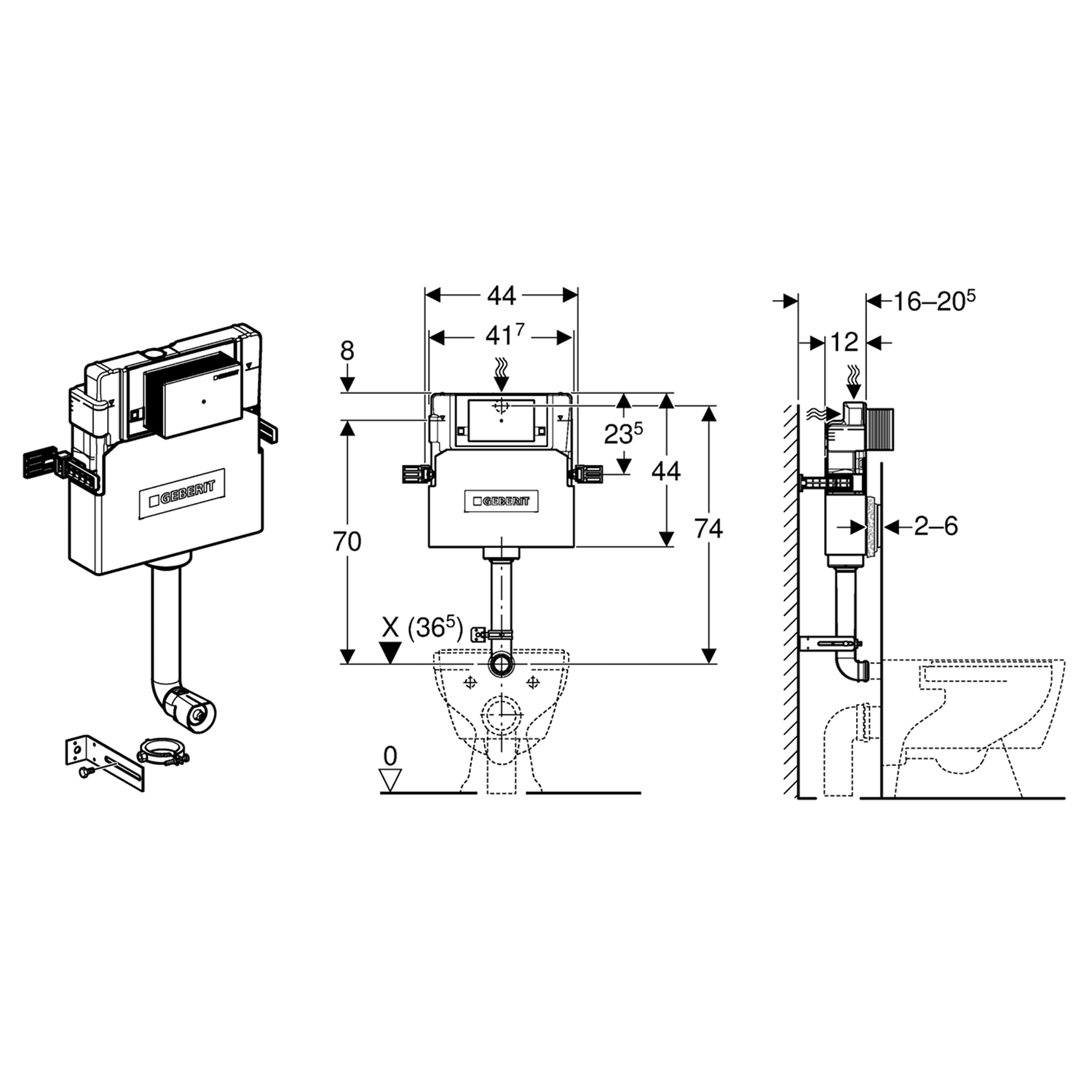

Dimensions:
- Total height: 635 - 720mm
- Cistern height: 445mm
- Total width: 570mm
- Cistern width: 410mm
- Total depth: 180mm
- Cistern depth: 120mm
Technical Specifications |
---|
Product Code | 109.105.00.1 |
---|---|
Type | Concealed Cisterns |
Brand | Geberit |
Brand Range | Geberit Delta |
GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Popular Features | WRAS Approved |
---|---|
Material | Plastic |
Water Inlet LocationMore information | Rear & Top Centre |
Water Inlet Location:
This is the location where the mains water feed can connect to the cistern, when viewed from the front.
Cisterns that feature Bottom Left & Right inlets are usually supplied with a plug to seal the inlet which isn't used.
Shape | Square |
---|---|
Style | Modern |
Width (mm) | 570 |
---|---|
Height (mm) | 720 |
Depth (mm) | 180 |
