- Convenient 4-in-1 pack: Rimfree® Smyle wall hung toilet pan, Duofix concealed frame, Sigma cistern, Sigma01 dual flush plate and slim toilet seat
- Minimalist angular lines, timeless white finish and discreet design to fit any bathroom
- Concealed cistern crafted from durable, tested materials for years of dependable use
- One-piece blow-moulded cistern construction ensures no leaks as there are no joins for water to escape from
- Insulating polystyrene jacket helps to reduce condensation and enables silent water filling & discharging
- Adjustable dual flush system to save water and reduce your bills - preset to 5.8/3 litres as standard, and adjustable between 2-4l for the half flush
- Cistern operating pressure: 0.1 - 10 bar
- Meets EN 14055, Class II standards
- Immediate post flush capability possible with factory settings - comes with required fill and flush valves for it to be operational immediately after installation
- Easy maintenance - access all parts easily by removing the flush plate
- Flush bend and water supply connection designed for easy installation
- Water inlet location on the rear or top centre for easy installation
- Powder-coated steel frame with galvanized steel adjustable feet for added flexibility
- Frame weight capacity: 400kg
- Suitable for solid wall and plasterboard installations
- Supplied with straight pan connector and angled pan connector
- Includes Geberit Sigma01 dual flush plate in Polished Chrome finish with round buttons
- Pan made from hard-wearing vitreous china ensuring quality for years to come
- Patented Geberit Rimfree® technology provides a targeted and hygienic flush with patented flush guide
- Smooth inner surface cleans with a single swipe, making sure all dirt is removed immediately
- Toilet seat features quick-release Chrome finish hinges constructed from brass. Making cleaning easier and more efficient
- Soft close seat mechanism for a peaceful bathroom
- Toilet seat is constructed from Duroplast, boasting chemical and scratch resistance with no fading or discoloration
- Comes with fixing kit
- Trusted Geberit engineering ensures reliable and consistent performance
- Frame, cistern & pan covered by a 10 year manufacturer’s guarantee
- Dual flush plate covered by a 5 year manufacturer’s guarantee
- Toilet seat covered by a 2 year manufacturer’s guarantee

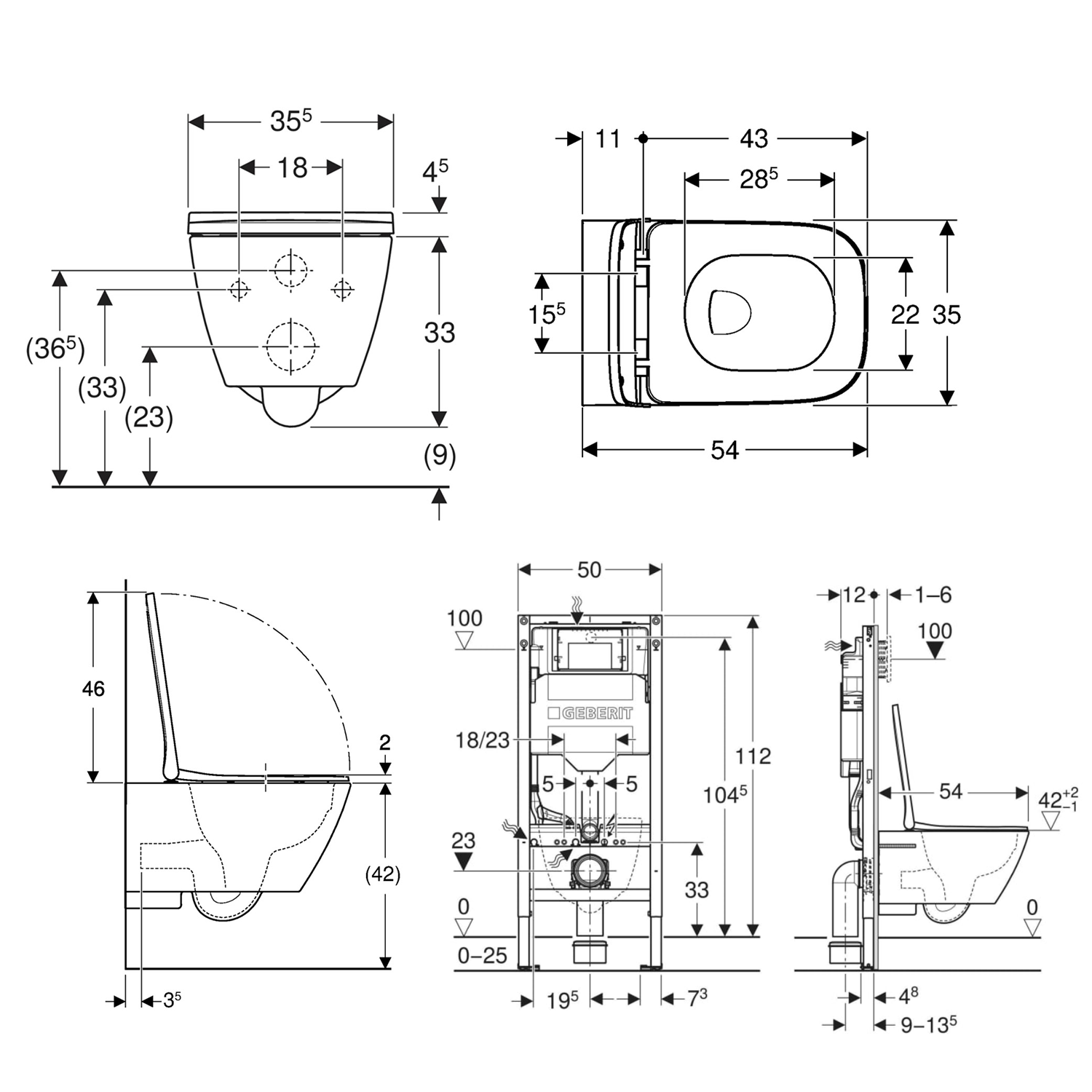

Dimensions:
- Frame & cistern - Height: 1120 - 1140mm, Width: 500mm, Cistern depth: 120mm
- Pan - Height: 330mm, Width: 350mm, Depth: 540mm
- Seat - Height: 45mm, Width: 355mm, Depth: 450mm
- Flush plate - Height: 164mm, Width: 246mm, Depth: 13mm
Technical Specifications |
---|
Product Code | 118.349.21.1 |
---|---|
Type | Rimless Toilets, Wall Hung Toilets |
Brand | Geberit |
Brand Range | Geberit Sigma |
GuaranteeMore information | Various |
Popular Features | Dual Flush Cistern, Easy to Clean Rimless Design, Height Adjustable, Quick-Release Hinges, Soft Close Toilet Seat |
---|---|
Material | ABS Plastic, Brass, Duroplast, Steel, Vitreous China |
Soil Pipe DirectionMore information | Horizontal |
Water Inlet LocationMore information | Rear & Top Centre |
Shape | Round, Square |
---|---|
Mounting Type | Wall Mounted |
Finish | Chrome, White |
Style | Modern |
Width (mm) | 355 |
---|---|
Height (mm) | 375 |
Depth (mm) | 660 |
Maximum Weight Capacity (kg) | 400 |
Projection (mm) | 540 |
