The Harbour Clarity 3 Outlet Thermostatic Concealed Shower Valve with integrated diverter will add a touch of class to any bathroom. Its elegant design provides exact temperature control and allows for the independent or simultaneous operation of two shower accessories and diverts to a third. Compatible shower accessories include fixed shower heads, slide rail kits, wall handset kits, body jets, and overflow bath fillers. The versatility of the valve does not stop there, you can install the Harbour Clarity valve in either a portrait or landscape orientation, allowing you to customise your shower setup.
Within the heart of the valve, you'll come across our ingenious Anti Calc Thermostatic Cartridge. This original design is engineered to tackle common problems such as drops in water temperature and flow rates due to concealed blockages. Pressing the safety button on the temperature handle and rotating to its highest heat setting and then to the lowest cold setting, enables the cartridge to effectively flush away grime, limescale, and debris.
Features:
Dimensions:
Flow rates:
Within the heart of the valve, you'll come across our ingenious Anti Calc Thermostatic Cartridge. This original design is engineered to tackle common problems such as drops in water temperature and flow rates due to concealed blockages. Pressing the safety button on the temperature handle and rotating to its highest heat setting and then to the lowest cold setting, enables the cartridge to effectively flush away grime, limescale, and debris.
Features:
- Modern 3 outlet concealed design with triple handle control
- Stunning Chrome finish
- Thermostatic valve with auto-shut off mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Triple handle control - top and bottom handles direct the flow of water between outlets & the middle handle controls the water temperature
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- Complies with BSEN 1111
- Shower head or shower handset sold separately, please see our recommended extras
- Covered by a 10 year manufacturer’s guarantee

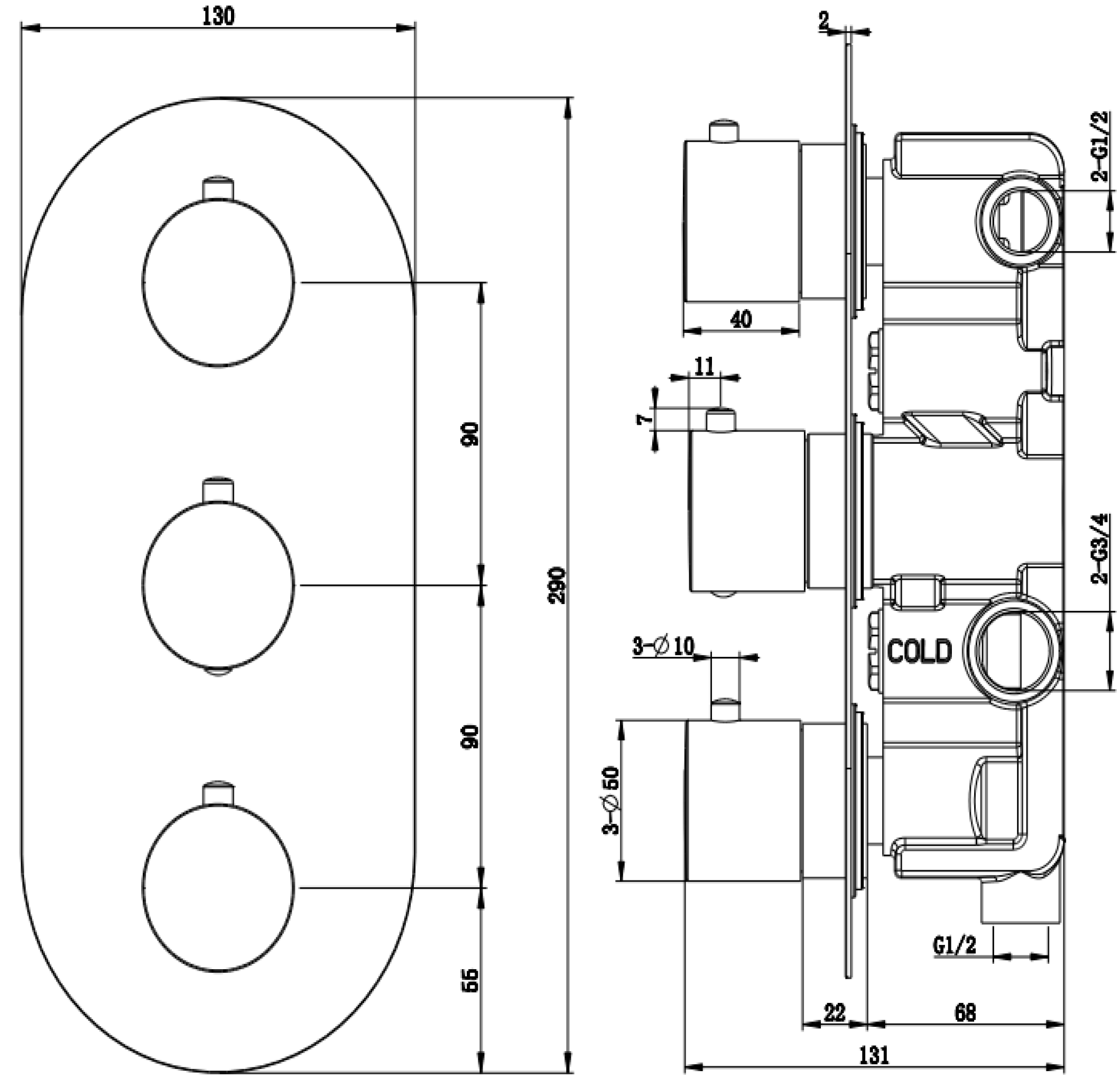

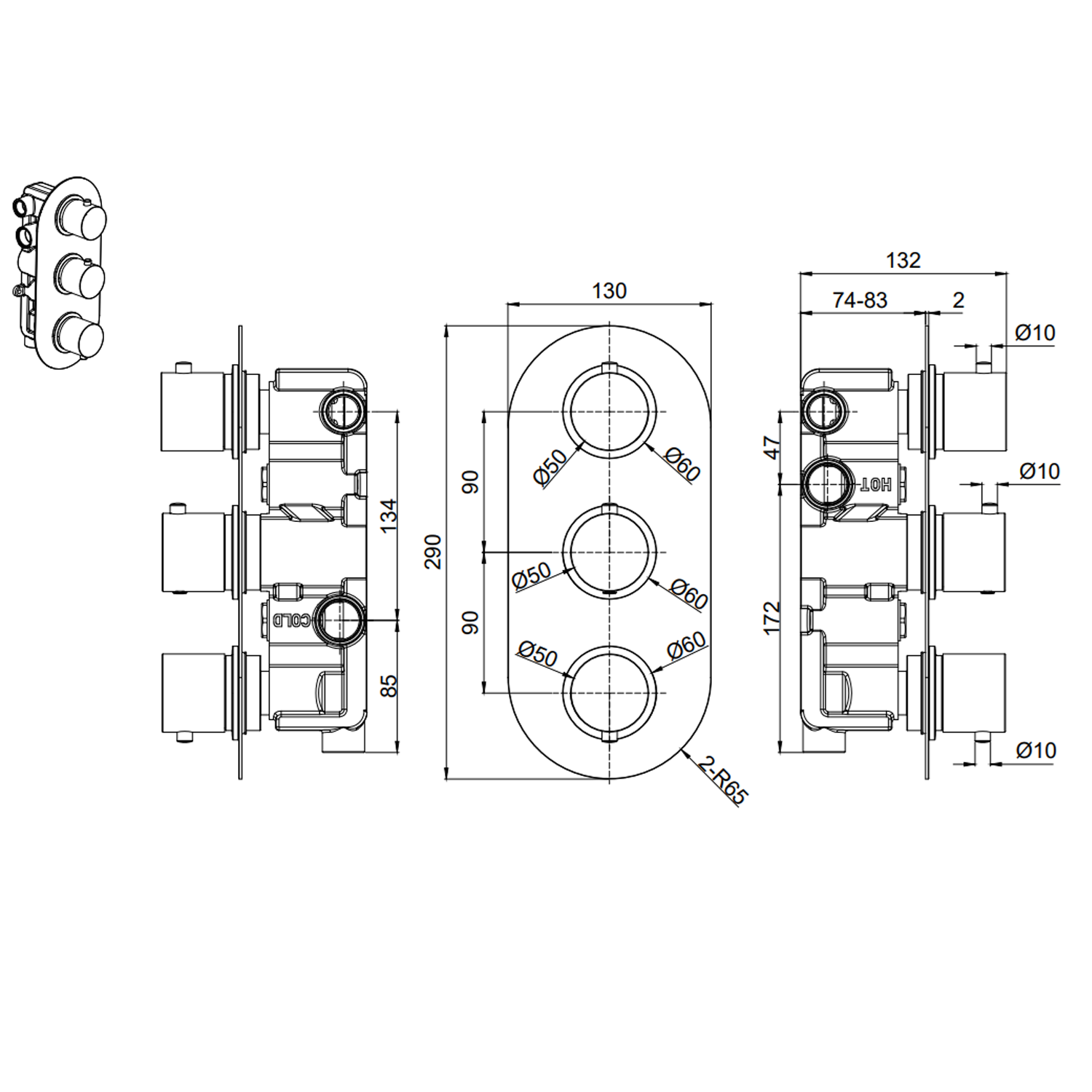

Dimensions:
- Height: 290mm
- Width: 130mm
- Depth: 131mm
Flow rates:
- 0.5 bar (l/min): 10.0
- 1.0 bar (l/min): 14.0
- 1.5 bar (l/min): 17.1
- 2.0 bar (l/min): 19.8
- 3.0 bar (l/min): 24.4
- 4.0 bar (l/min): 28.1
- 5.0 bar (l/min): 31.6
| Product Code | HBCLA78 |
|---|---|
| Type | Concealed Shower Valves |
| Brand | Harbour |
| Brand Range | Harbour Clarity |
| GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of OutletsMore information | 3 Outlets |
|---|---|
| Material | Brass |
| Temperature Control | Thermostatic |
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Round |
|---|---|
| Mounting Type | Wall Mounted |
| Finish Texture | Polished |
| Finish | Polished Chrome |
| Style | Modern |
| Orientation | Landscape, Portrait |
| Handle Type | Round, Triple Control |
| Width (mm) | 130 |
|---|---|
| Height (mm) | 290 |
| Depth (mm) | 131 |
| Flow Rate at 0.5 Bar (l/min) | 10 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 14 |
| Flow Rate at 1.5 Bar (l/min) | 17.1 |
| Flow Rate at 2 Bar (l/min) | 19.8 |
| Flow Rate at 3 Bar (l/min) | 24.4 |
| Flow Rate at 4 Bar (l/min) | 28.1 |
| Flow Rate at 5 Bar (l/min) | 31.6 |
| Minimum Water PressureMore information | 0.5 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
