£151.99
Recommended Extras
We've hand-picked these items because they are a great choice alongside the Hudson Reed Revolution Industrial Deck Mounted Bath Filler Tap
Features:
Dimensions:
- 2 hole bath filler mixer
- Unique industrial design
- Chrome finish with brass internal
- Ceramic disc (1/4 turn)
- Wheel control
- Deck mounted
- Minimum water pressure of 0.2 bar
- Made in the UK
- 20 year manufacturer's guarantee

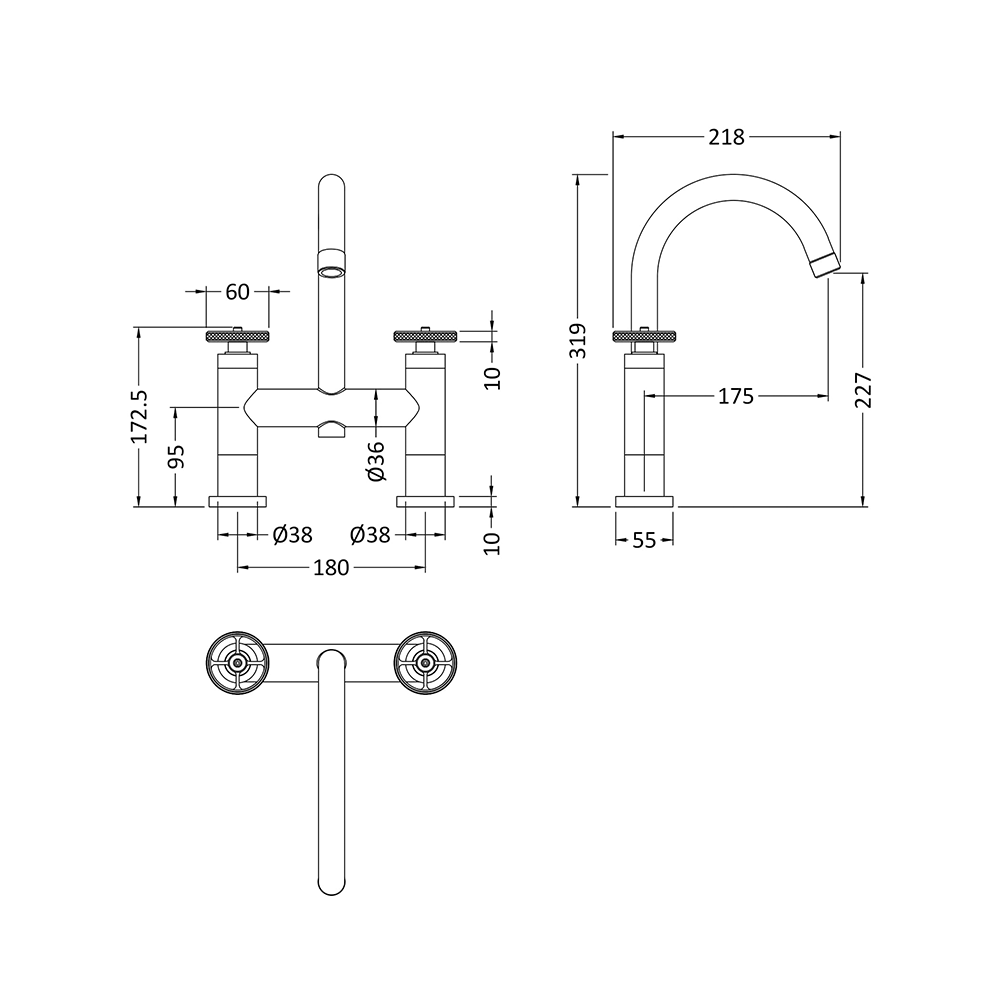

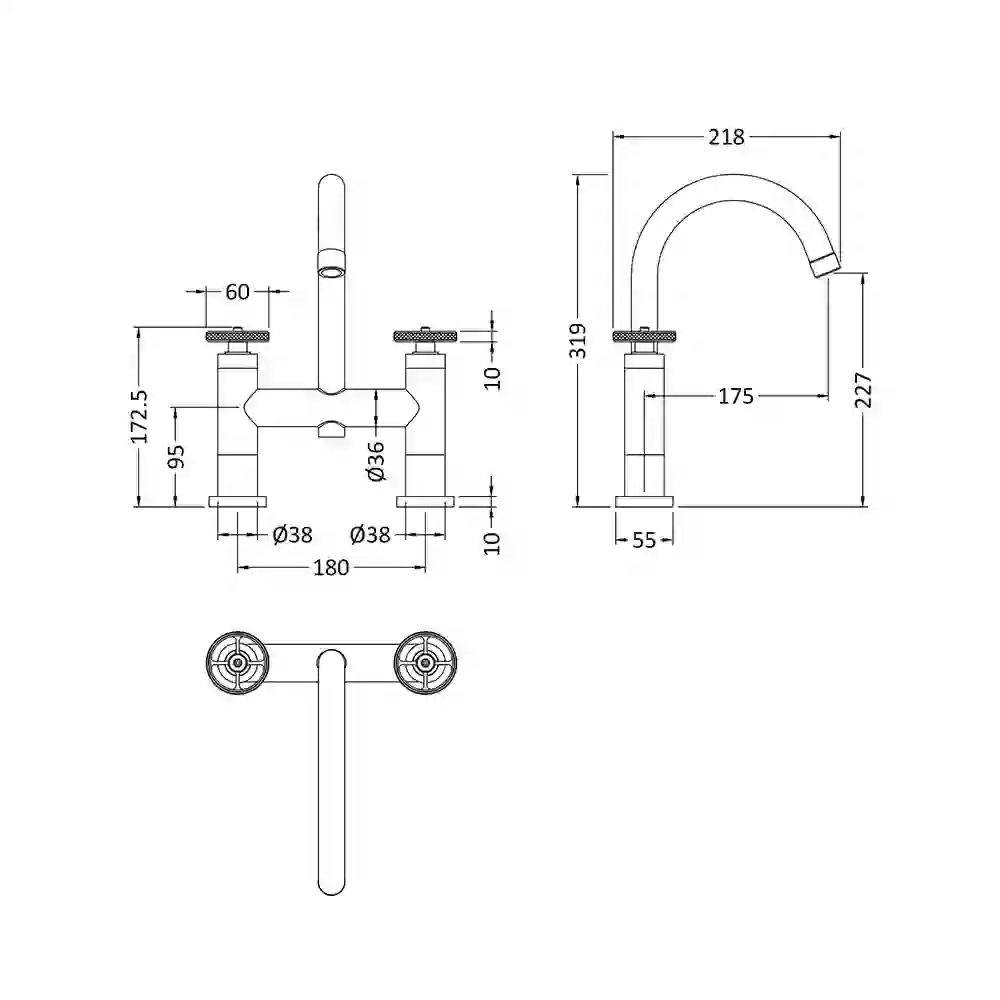

Dimensions:
- Height: 319mm
- Width: 230mm
- Depth: 50mm
- Projection: 175mm
| Cleaning Instructions |
|---|
| Product Code | TIW353 |
|---|---|
| Type | Bath Fillers |
| Brand | Hudson Reed |
| Brand Range | Hudson Reed Revolution |
| GuaranteeMore information | 20 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Cartridge TypeMore information | Ceramic Disc |
|---|---|
| Waste TypeMore information | Not Included |
| Number of OutletsMore information | 1 Outlet |
| Material | Brass |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
The waste in your basin will allow the water in your sink to safely flow down the drain. There are two main types of waste available: slotted & unslotted.
If your basin has an overflow you will need a slotted waste. If your basin doesn’t have an overflow, you will need an unslotted waste.
For a full explanation of the types of basin waste available, take a look at our comprehensive guide.
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
| Shape | Curved |
|---|---|
| Mounting Type | Deck Mounted |
| Finish Texture | Polished |
| Finish | Chrome |
| Style | Modern |
| Tap Holes | 2 Holes |
| Handle Type | Dual Control, Round |
| Spout TypeMore information | Swan Neck Spout |
Tap spouts are available in a variety of different styles which have an effect on both the look and function of your tap. Different spout types will have different heights and projections, so it’s important to choose one which will complement your basin or bath.
| Width (mm) | 230 |
|---|---|
| Height (mm) | 319 |
| Depth (mm) | 50 |
| Projection (mm) | 175 |
| Flow Rate at 0.5 Bar (l/min) | 29 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 40 |
| Flow Rate at 2 Bar (l/min) | 48 |
| Minimum Water PressureMore information | 0.2 |
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
