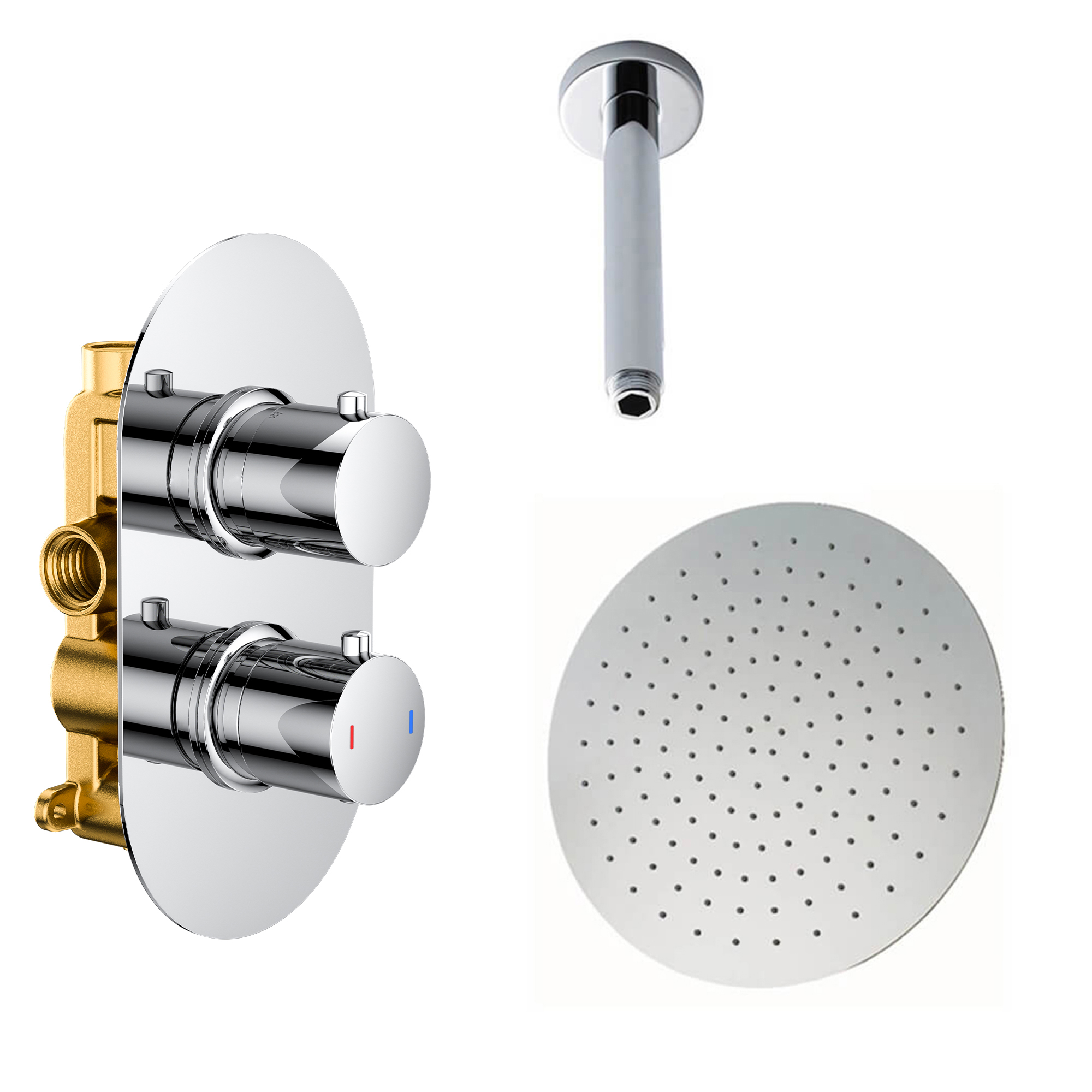

Personalise your shower with the Melanie Concealed Shower Valve & Fixed Shower Head. You can customise your ideal shower setup with a choice of four distinct shower arms and three shower heads. What's more, the valve can be easily installed either vertically or horizontally, giving you the flexibility to create a shower that suits your space.
Inside the valve, you'll find the innovative Anti Calc Thermostatic Cartridge, skillfully designed to address common issues like sudden drops in water temperature and reduced water flow due to blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle, and then make an adjustment from hot to cold. This straightforward process effectively removes any accumulated dirt, limescale, and debris that might have accumulated over time, ensuring your shower runs smoothly.
Shower Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Shower Arm Features:
Inside the valve, you'll find the innovative Anti Calc Thermostatic Cartridge, skillfully designed to address common issues like sudden drops in water temperature and reduced water flow due to blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle, and then make an adjustment from hot to cold. This straightforward process effectively removes any accumulated dirt, limescale, and debris that might have accumulated over time, ensuring your shower runs smoothly.
Shower Valve Features:
- Modern 1 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Dual handle control - top diverts the flow of water between outlets and the bottom controls the water temperature
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS Approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

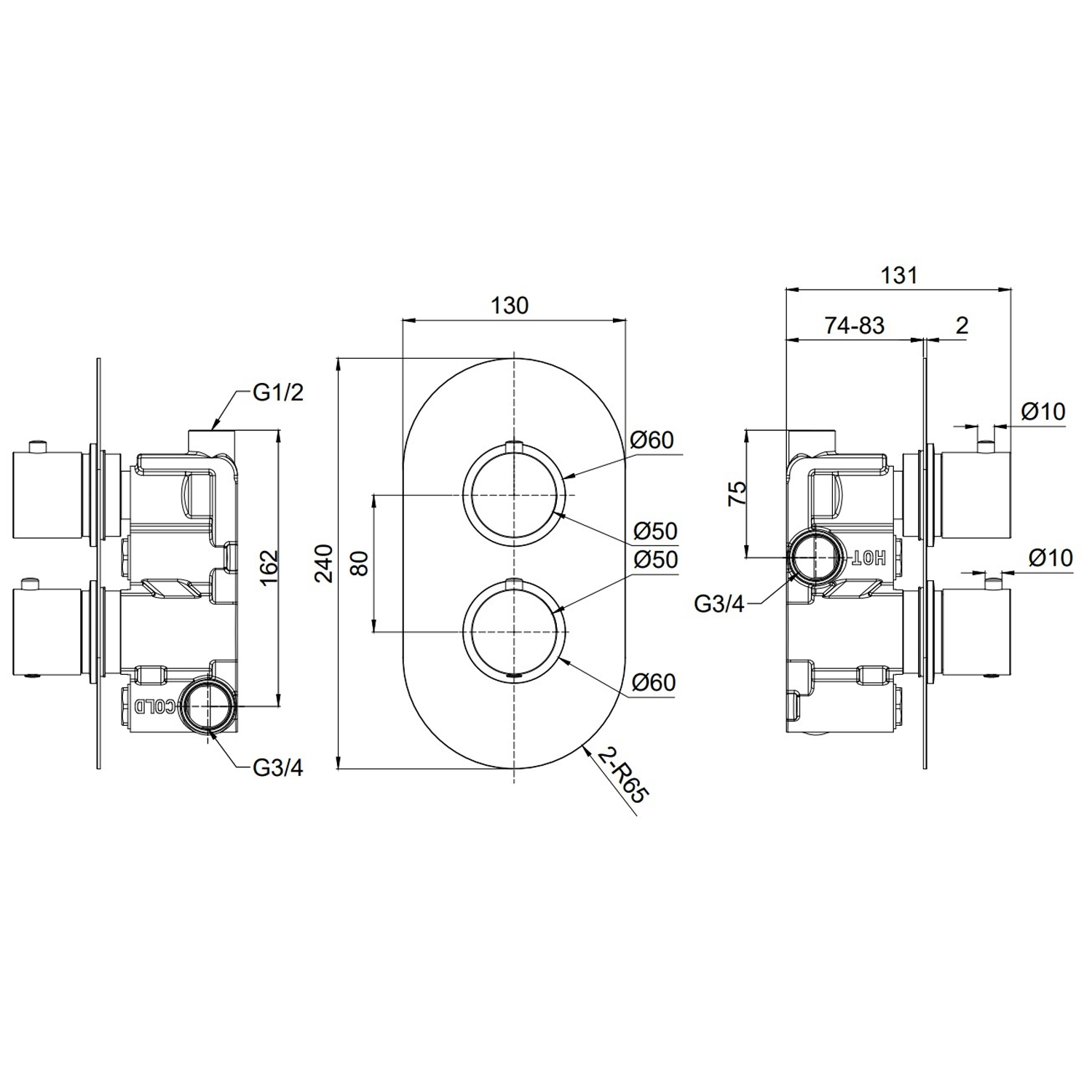

Dimensions:
- Height: 240mm
- Width: 130mm
- Depth: 131.5mm
Flow rates:
- 0.5 bar (l/min): 11.1 l/min
- 1.0 bar (l/min): 15.5 l/min
- 1.5 bar (l/min): 18.9 l/min
- 2.0 bar (l/min): 21.8 l/min
- 3.0 bar (l/min): 26.5 l/min
- 4.0 bar (l/min): 30.5 l/min
- 5.0 bar (l/min): 33.8 l/min

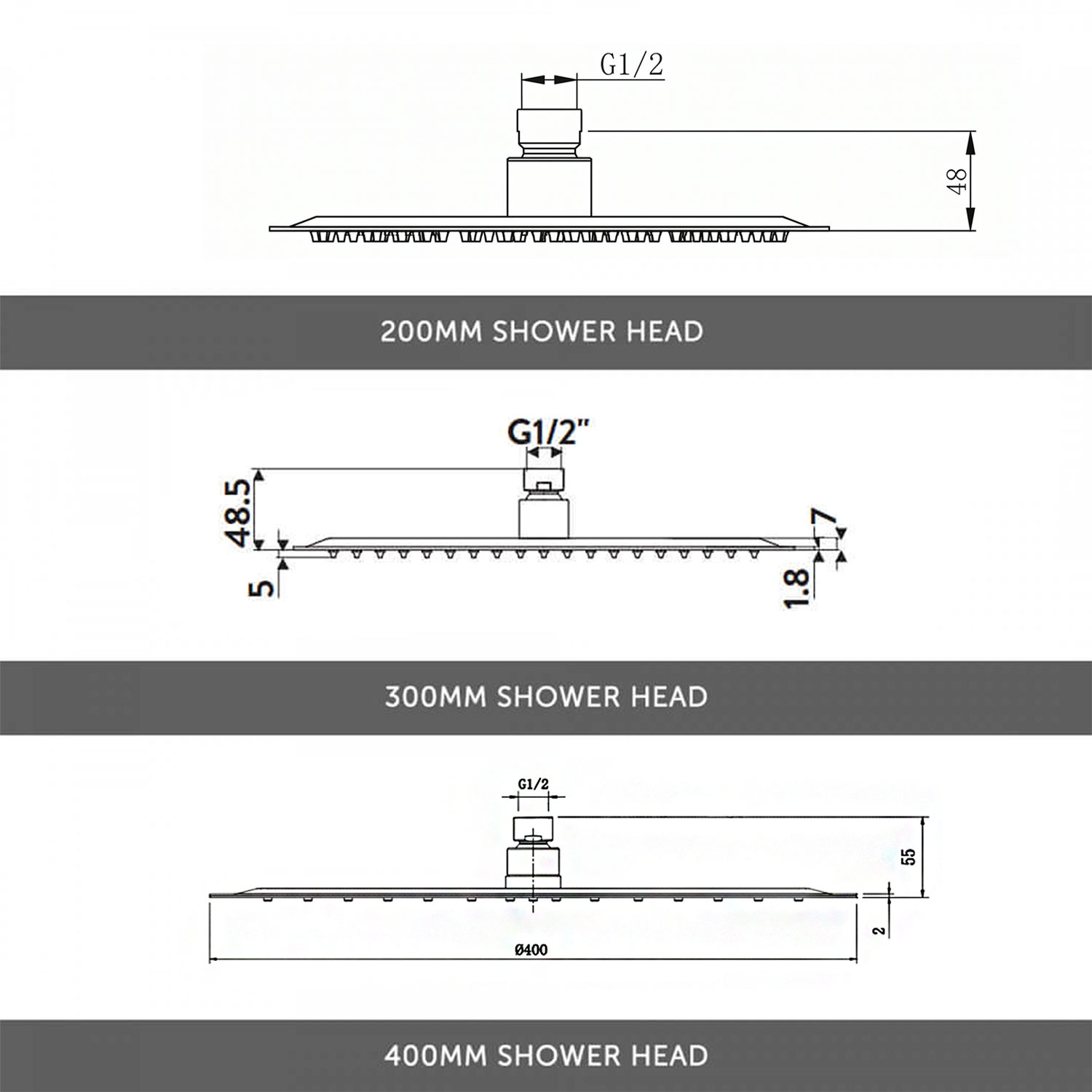

Shower Head Features:
- Choose from 200, 300, or 400mm
- Stainless steel shower head in a sleek Chrome finish
- 400mm head features air injection technology - providing softer showering experience & reducing water usage by mixing air with water
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
- 200 & 300mm heads covered by a lifetime manufacturer’s guarantee
- 1 year manufacturer's guarantee on 400mm head
Shower Arm Features:
- 4 shower arms to choose from to customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
- 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee
Product Code | dr-melanie-concealed-shower-kit |
---|---|
Type | Concealed Shower Sets & Valves |
Brand | Drench |
Brand Range | Drench Melanie |
GuaranteeMore information | Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Number of OutletsMore information | 1 Outlet |
---|---|
Popular Features | Easy Clean Nozzles |
Material | Brass, Stainless Steel |
Temperature Control | Thermostatic |
This indicates how many water outlets you can pair with your shower valves. Choosing valves with more outlets will give you flexibility over the number of products you can add to your shower.
Each outlet from your shower valve will divert water to the section of your shower that needs it, so each extra outlet allows you to add another product. For example: with 1 outlet you could have just a fixed shower head. 2 outlets will allow you to have a fixed shower head and shower handset. 3 will allow both of these with the addition of a body jet.
Shape | Round, Square |
---|---|
Finish Texture | Polished |
Finish | Chrome |
Style | Modern |
Orientation | Landscape, Portrait |
Handle Type | Dual Control, Round |
Mounting Type | Select an option first |
Flow Rate at 0.5 Bar (l/min) | 11.1 |
---|---|
Flow Rate at 1 Bar (l/min) | 15.5 |
Flow Rate at 1.5 Bar (l/min) | 18.9 |
Flow Rate at 2 Bar (l/min) | 21.8 |
Flow Rate at 3 Bar (l/min) | 26.5 |
Flow Rate at 4 Bar (l/min) | 30.5 |
Flow Rate at 5 Bar (l/min) | 33.8 |
Minimum Water Pressure | Select an option first |
