Wall Hung Toilet Frame and Pneumatic Concealed Cistern

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £66.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £50.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Wall hung concealed cistern and frame
  • Height adjustable frame
  • Dual flush pneumatic system with option to adjust flush capacity
  • Lifestyle manufacturer's guarantee

Full details

The Drench difference

3D Design Service

We've helped thousands of customers create their dream space. More

Free consultations

Book a chat with our bathroom experts. More

Rated 'Excellent'

Delighting customers for 10+ years. See reviews

90 days to change your mind

+ optional specialist collection service. See policy

Free delivery over £500

Standard delivery to most of UK, plus discounted next day rates too. See policy

Features:
  • Wall hung concealed WC cistern and frame
  • Height adjustable frame with slimline profile
  • Made from galvanised steel & ABS plastic for long-lasting and durable construction
  • Expanded polystyrene jacket helps to reduce condensation and enables silent water filling & discharging
  • Dual flush pneumatic system, designed to save water and reduce your bill
  • Adjustable dual flush system to save water and reduce your bills - preset to 6/3 litres as standard, and adjustable between 6-7l for the full flush and 3-4l for the half flush
  • Water inlet location on left & right hand side for easy installation
  • Cistern operating pressure: 0.2 - 10 bar
  • Frame weight limit: 400kg
  • Suitable for solid wall and plasterboard installations
  • Supplied with straight pan connector and angled pan connector
  • Flush plate sold separately, please see our recommended extras
  • Wall hung toilet sold separately, shop the range here
  • Lifetime manufacturer's guarantee

This cistern & frame is specifically designed for 'Dual Flush Plate with Round or Angular Buttons', as seen in our recommended extras above or alternatively, please click here

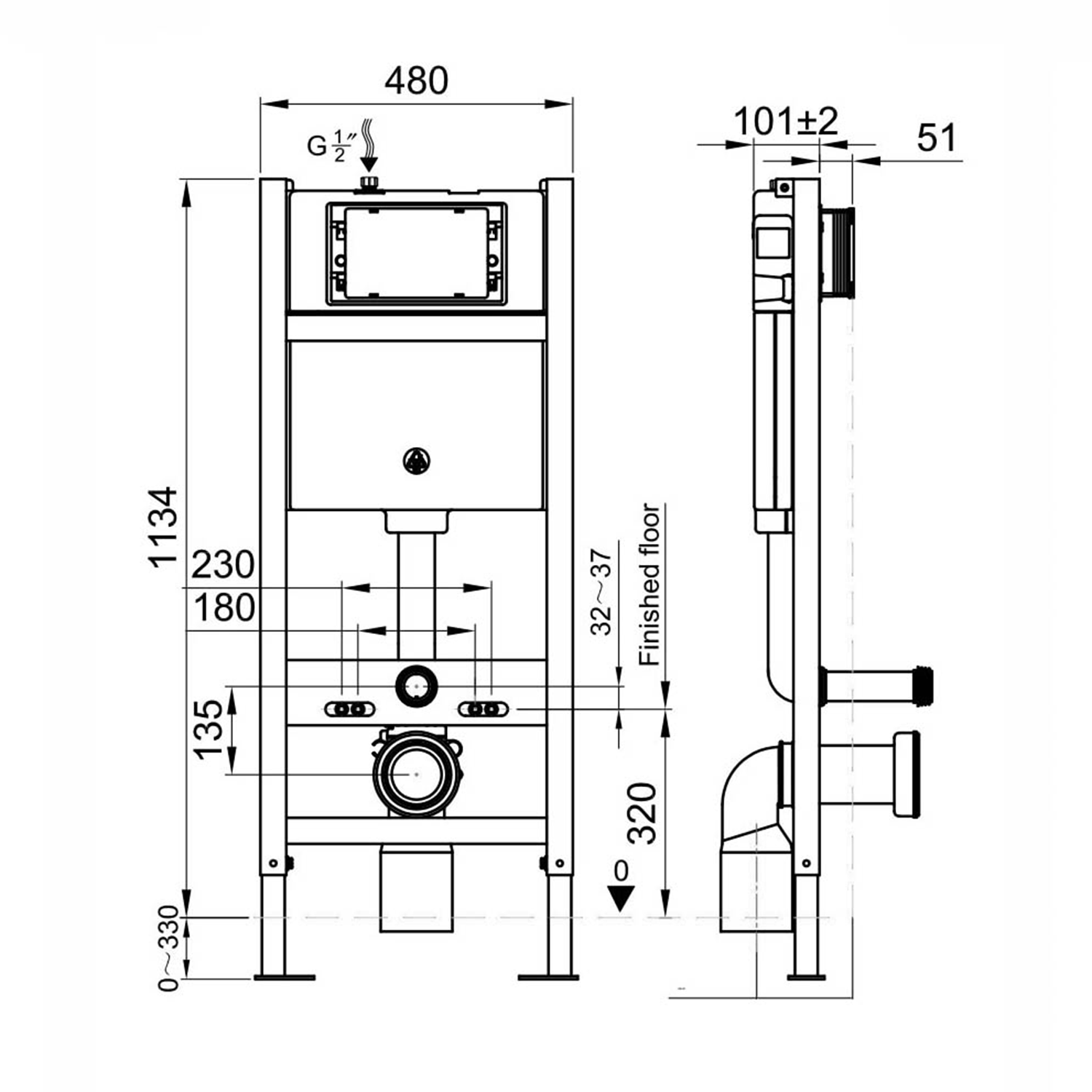

Dimensions:
  • Height: 1134 - 1464mm
  • Width: 480mm
  • Depth: 152mm

Downloads
Technical Specifications
Product Overview
Product Code WC-FRAME002
Type Concealed Cisterns & Frames
Brand Drench
GuaranteeMore information Lifetime

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Features
Popular Features Pneumatic Flush
Material ABS Plastic, Galvanised Steel
Style
Shape Square
Finish White
Style Modern
Dimensions
Width (mm) 480
Height (mm) 1134
Depth (mm) 152
Maximum Weight Capacity (kg) 400
